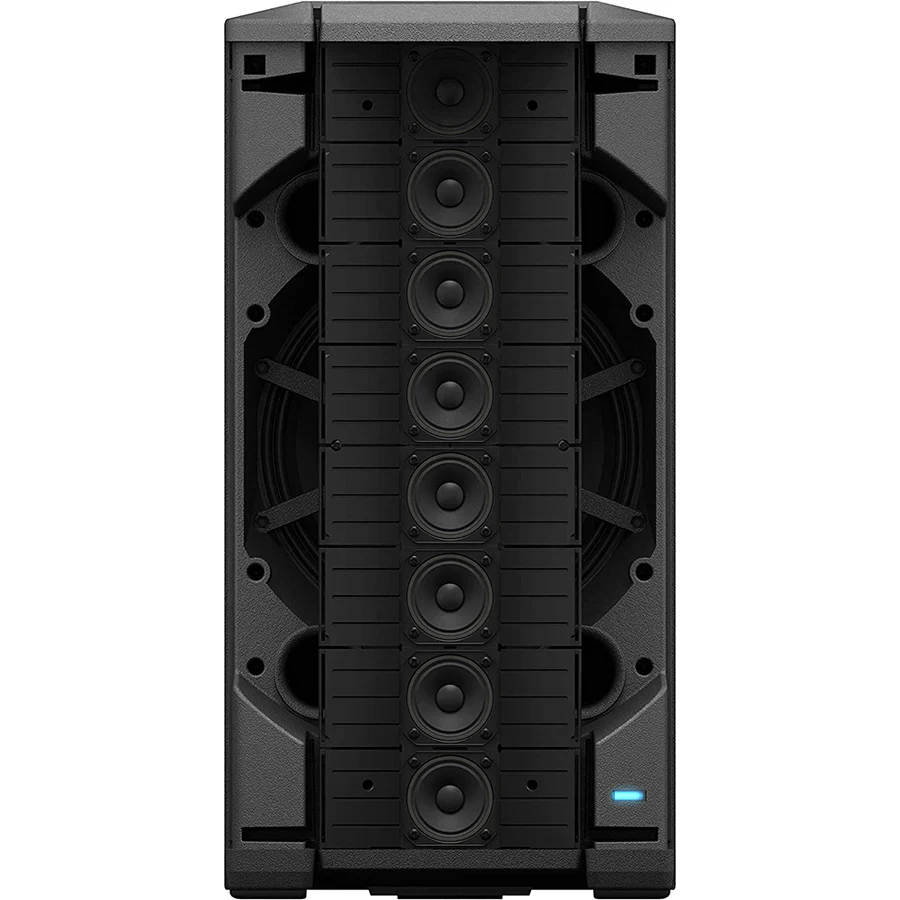

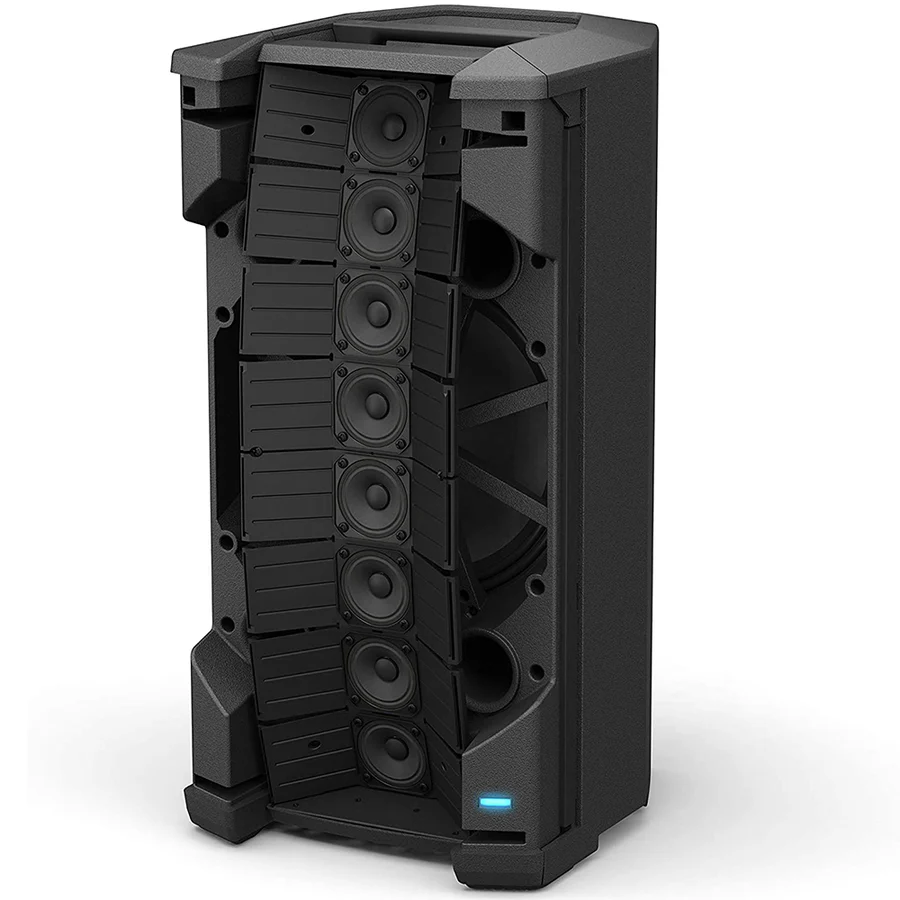

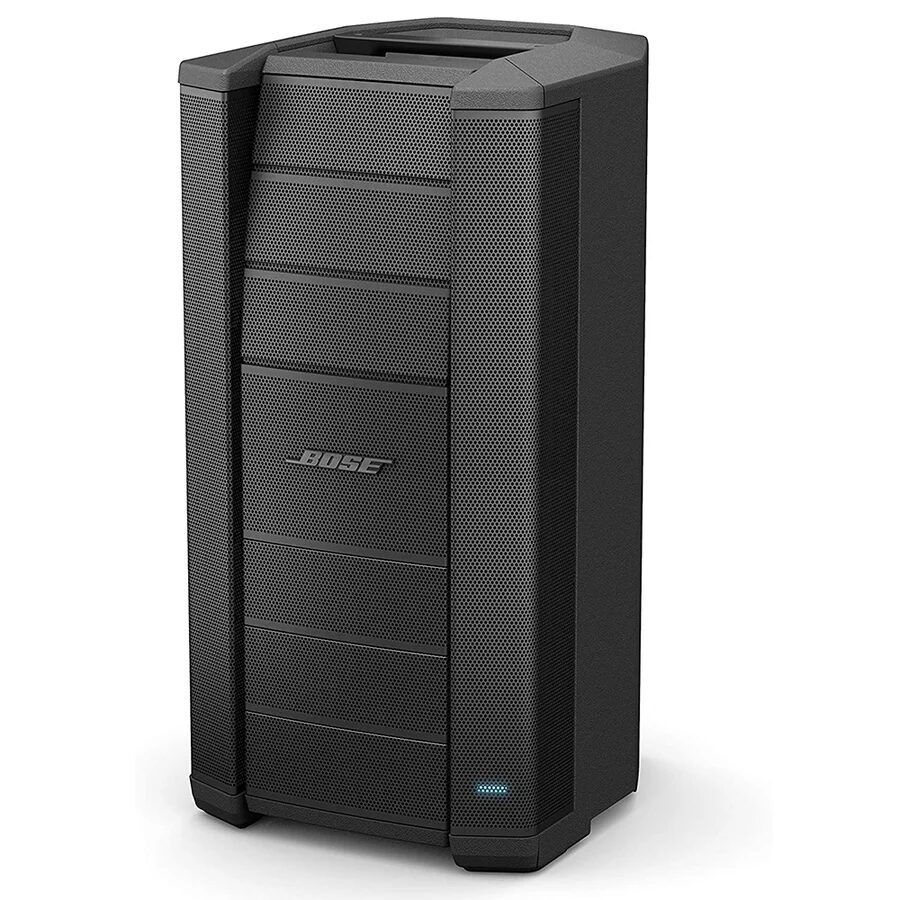

Bose F1 Model 812 Flexible Array Loudspeaker view 1
Bose Professional

Bose F1 Model 812 Flexible Array Loudspeaker

169095.00

Availability: Out Of Stock

  • 100% genuine, brand-warranted stock
  • Expert installation & room calibration
  • Free acoustic consultation before you buy
Description

The Bose F1 Model 812 Flexible Array Loudspeaker is a Bose F1 flexible array system component from the Bose Professional portable range. AudioFusion Solutions is an authorised Bose Professional dealer: every unit is genuine, carries full manufacturer warranty, and can be delivered and installed anywhere in India.

Listed at ₹1,69,095 MRP (inclusive of taxes), per the Bose Professional portable price list effective 2026-05-01.

Full manufacturer specifications, a demonstration at our Gomti Nagar experience centre, or a system design around this product — talk to our team and we will put it together.

Technical specifications
Performance
Frequency range (-10 dB)
43 Hz – 20 kHz
Coverage, horizontal
100°
Coverage, vertical
40°
Calculated maximum SPL @ 1 m
132 dB
Power handling, peak
1000 W
Transducers
High-frequency
8 × 2.25 in (57 mm) mid-high-frequency drivers
Low-frequency
1 × 12 in (305 mm) low-frequency driver
Crossover
600 Hz, 4th-order Butterworth
Driver protection
Dynamic limiter
Amplification
Number of channels
2
Power class
Class D
THD+N
0.1% maximum (30 Hz – 15 kHz)
Audio inputs
Input channels
2
Connectors
(1) XLR-1/4-in combo, (1) RCA stereo pair, (1) 1/4-in TS/TRS
Phantom power
No
Integrated DSP
DSP-enabled
Yes
Processing
Output EQ, limiter
Electrical
AC power input
100–240 V, 50/60 Hz
AC power connector
IEC
Physical
Dimensions (H×W×D)
663 mm × 371 mm × 333 mm (26.1 in × 14.6 in × 13.1 in)
Net weight
20.2 kg (44.5 lb)
Enclosure
High-impact composite materials
Grille
Steel, powder-coated
Operating temperature
0 °C to 50 °C
General
Warranty
2 years

Specifications published by Bose Professional for 731419-2110. E&OE. Ask us if you need a detail that is not listed.
